5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity

5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity

Semi Automatic PET Bottle Blowing Machine

5L manual pet bottle blowing machine

manual pet bottle blowing machine 1 Cavity

Place of Origin:

China

Brand Name:

Waterpro

Model Number:

SBM-5L

Contact Us
Request A Quote
Product Details
Neck Diameter(mm):
55mm
Bottle Volume(ml):
5L
Cavity::
One Cavity
Max.Bottle Height(mm):
550mm
Max.Bottle Diameter(mm):
300mm
Voltage:
380V/220V
Weight (KG):
1700 KG
Blow Moulding Type:
Stretch Blow Moulding
Machine Size:
2150*730*1700mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD6600-USD9800/set
Packaging Details
export wooden case
Delivery Time
30days
Payment Terms
T/T
Supply Ability
10 set/month
Product Description

5L Manual Semi Automatic Pet Bottle Pet Blowing Machine Price For PET Preform

Description:

3 to 5 gallon pet bottle Blowing molding machine, 5L 10L 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.



Specification:



Name 5L semi auto blowing machine
Output According to bottle type 100-120PCS/H
Product species Bottle diameter 150mm-300mm
bottle height 250mm-550mm
Bottle mouth diameter 15mm-100mm
Mold cavity 1 cavity
mould thickness 200~450mm
Effective area of mold 600*600mm
Main power Power 127v monophase 50/60HZ
install power/actual power 30kw/10kw
Air source
High pressure air compressor 1.2m3/min 3.0MPa
Cold dry machine 2.0m3/min 3.0MPa 1set
cooling water Cooling water quantity 15L/min
Main machine size Length width height/weight 2150*730*1700mm/950kg
Oven size Length width height /weight 2650*680*1580mm/750kg





Product details:

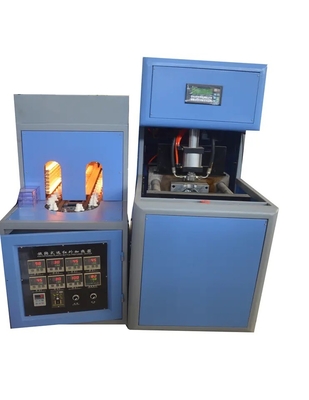

5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity 0

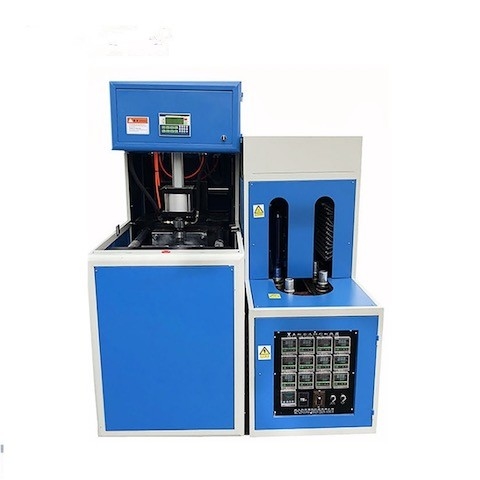

5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity 1

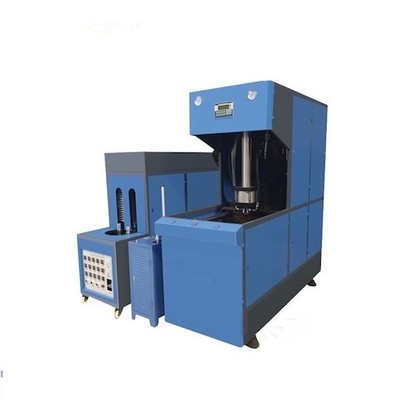

5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity 2

5L Manual Semi Automatic PET Bottle Blowing Machine 1 Cavity 3
