Semi Automatic Blowing Molding Machine For PET Bottles
Specification:
Name
Item
Unit
Details
Blowing machine
Dimension
mm
1600*600*1610mm
Bottle Volume(max)
ml
2000
Bottle volume(Min)
ml
50
number of cavities
mold
2
Model thickness(max)
mm
200
Model width
mm
360*390
Mold strock
mm
170
Streching stroke(max)
mm
420
Working pressure
Mpa
0.8-1.0
Blowimg pressure
Mpa
2.0-3.0
Pre-heater
Dimension
mm
1870*630*1450
weight
kg
260
voltage
KW
380V/14KW
Lamp
pcs
28
working pressure
kw
8

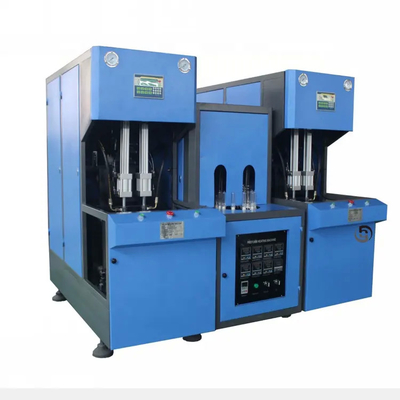

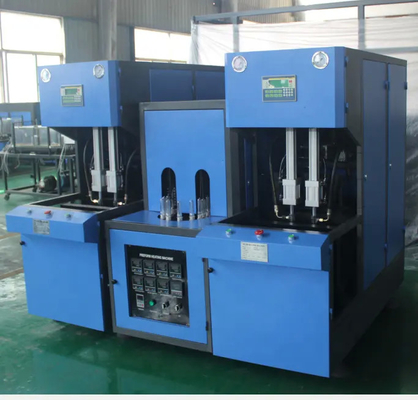

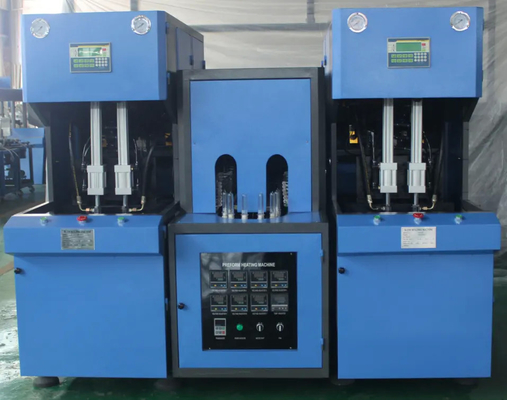

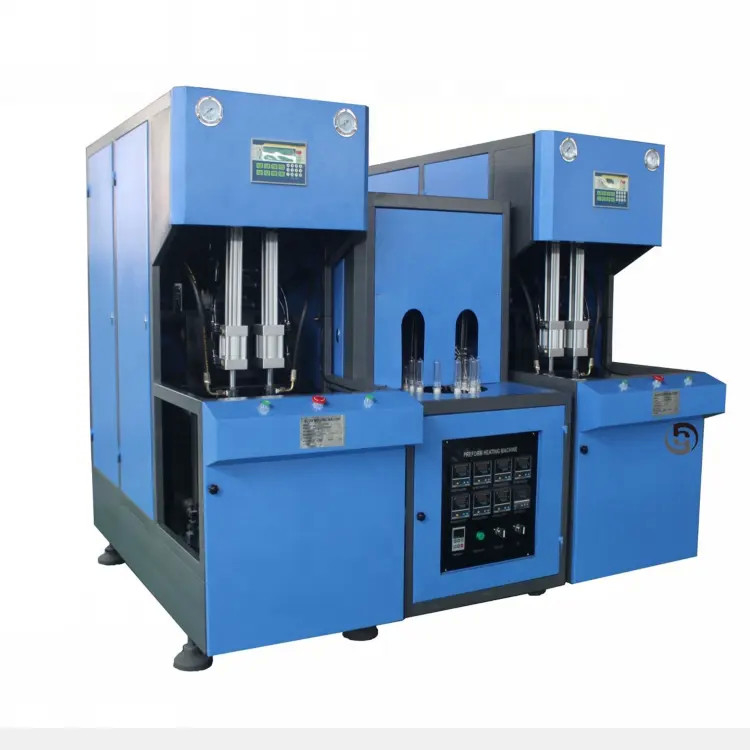

WT-B-II semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.
