Bottle Blowing Equipment
Created with Pixso. Semi Automatic Bottle Blowing Equipment , 2 Cavity PET Blowing Machine for 2000ml
Semi Automatic Bottle Blowing Equipment , 2 Cavity PET Blowing Machine for 2000ml
  • name
  • name
  • name
  • name

Semi Automatic Bottle Blowing Equipment , 2 Cavity PET Blowing Machine for 2000ml

Brand Name: Waterpro
Model Number: WT-B2
MOQ: 1 set
Price: USD6600-USD8800/set
Delivery Time: 30days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Neck Diameter(mm):
30 Mm
Bottle Volume(ml):
2000 Ml
Cavity::
2 Cavities
Max.Bottle Height(mm):
305mm
Max.Bottle Diameter(mm):
150 Mm
Voltage:
380V/220V
Weight (KG):
1000 KG
Blow Moulding Type:
Stretch Blow Moulding
Packaging Details:
export wooden case
Supply Ability:
10 set/month
Highlight:

Semi Automatic Bottle Blowing Equipment

,

Bottle Blowing Equipment 2 Cavity

,

2 Cavity PET Blowing Machine 2000ml

Product Description

2 Cavities Semi Automatic PET Plastic Bottle Making Blowing Machine



Specification:

Name
Item
Unit
Details
Blowing machine
Dimension
mm
2000*615*1770mm
Bottle Volume(max)
ml
2500
Bottle volume(Min)
ml
50
number of cavities
mold
2
Mould thickness(max)
mm
230
open stroke
mm
340
Streching stroke(max)
mm
420
Working pressure
Mpa
0.8-1.0
Blowimg pressure
Mpa
2.0-3.0
Pre-heater
Dimension
mm
1700*565*1360
weight
kg
330
voltage
KW
380V/14KW
Air compressor
working pressure
Mpa
0.8-1.0
air pressure
Mpa
3.0
Product Description
WT-B2 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2500 ml.It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould, heavy locking mould, stable and fast. Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.

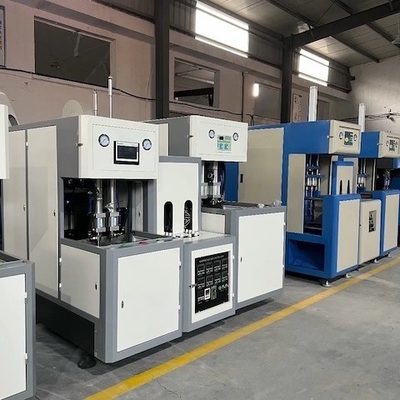

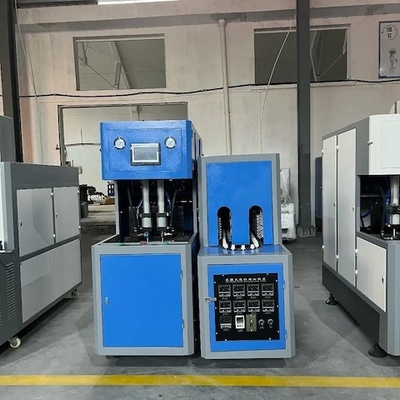

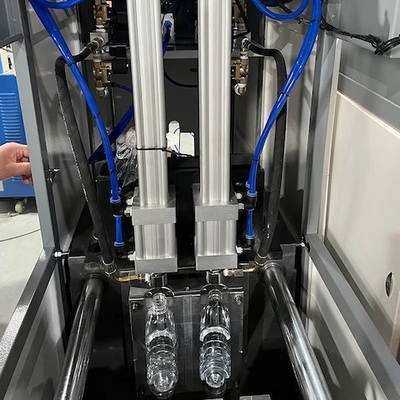

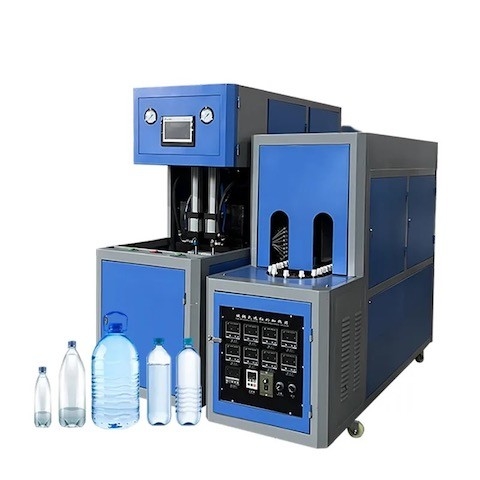

Semi Automatic Bottle Blowing Equipment , 2 Cavity PET Blowing Machine for 2000ml 0
Semi Automatic Bottle Blowing Equipment , 2 Cavity PET Blowing Machine for 2000ml 1
