| Brand Name: | Waterpro /OEM |
| Model Number: | WT-5L |
| MOQ: | 1 |
| Price: | USD29000-USD40000 |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, T/T, Western Union |

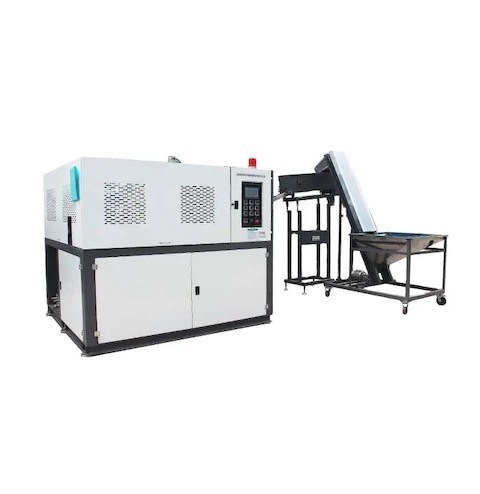

Bottle Blow Molding Machine Full-Automatic Plastic Bottle Blowing Machine For 5L Bottle
Full Automatic Bottle Blowing Machine for 3L to 8L plastic bottle
WT-5L is the fastest liner blow molding machine in mainland of China by now. WT-5L reaches around 1300-1500 BPH for 5000ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
WT-5L is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. WT-5L consists of three main parts: preform loading system, Heater channel & blow station.
MACHINE FEATURES:
Parameter
| WT-5L Fully-auto blow molding machine | |||
|
Container |
Max Volume |
L |
8 |
|
Theoretical output |
BPH |
1300-1500 |
|
|
Cavity |
|
2 |
|
|
Electrical |
Max heating power |
KW |
60 |
|
Heating Power |
KW |
42 |
|
|
Installed power |
KW |
64 |
|
|
Air Compressor |
Operating Pressure |
Mpa |
0.7 |
|
Air consuming |
L/min |
1400 |
|
|
Blowing Pressure |
Mpa |
3.0 |
|
|
Machine |
Machine Size |
mm |
2000x2200x2030 |
|
Machine Weight |
Kg |
3500 |
|
|
(**)Depending on bottle size, shape and weight. (*)Depending on bottle size and operation conditions. |
|||
Video
Video
|
