Full Automatic Bottle Blowing Equipment Machine SS304 Material For PET Bottle

Full Automatic Bottle Blowing Equipment Machine SS304 Material For PET Bottle

Bottle Blowing Equipment SS304

PET Bottle Blowing Equipment

Automatic pet bottle blowing machine

Place of Origin:


Brand Name:

Waterpro /OEM



Model Number:


Contact Us
Request A Quote
Product Details
All Colour , Customized
Fully Intelligent
Customer Logo , Can Print
Food & Beverage Factory
Shipping Way:
By Sea, Air Depend Client Need
Main Market:
Main Markets: Europe, Canada, The United States, South America, Australia, Etc.,
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
10 PCS per month
Product Description

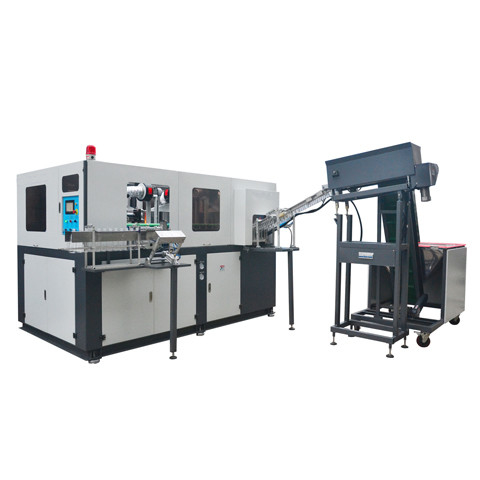

HY-   HY-4000 Model Full Automatic Blow Molding Machine Equipment For PET bottle

                 Full Automatic Bottle Blowing Equipment Machine SS304 Material For PET Bottle 0


HY-4000 is the fastest liner blow molding machine in mainland of China by now. HY-4000 reaches around 4000BPH for 350ML bottle.

Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high

output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly

and steadily.

HY-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages

of labor saving and no pollution. HY-4000 consists of three main parts: preform loading system, Heater channel & blow station.



1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .

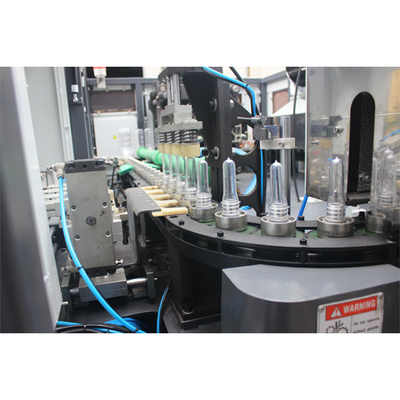

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously

    in the infrared preheater.

3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board

    in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety

    in case of a breakdown in certain procedure.

5. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

6. Air route design is divide into two parts .

7. Ideal effect of the chilling with the chilling system.

8. Low rejection rate: less than 0.3percent.


Container Max Volume L 2
Max Neck Diameter mm 38
Max Container Diameter mm 105
Max Container Diameter mm 335
Cavity   4
Theoretical Output bph 4000(*)
Electrical Clamping force KN 400
Heating Power KW 42
Max Heating Power KW 60
Air Compressor Operating Pressure Mpa 0.7
Low Pressure Consuming L/min 1400
Blowing Pressure Mpa 3.0
High Pressure Consuming L/min 3000-4000(**)
Chiller Pressure Mpa 0.3-0.5
Temperature 10-12
Flow Rate L/min 30
Machine Machine Size m 3.6x2.0x2.03
Machine Weight Kg 3500

(**)Depending on bottle size, shape and weight.

(*)Depending on bottle size and operation conditions.
