Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle

Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle

Customized Semi Automatic Blow Moulding Machine

0.3L Semi Automatic Blow Moulding Machine

2L semi auto blow moulding machine

Place of Origin:

China

Brand Name:

Waterpro

Model Number:

WT-B4

Contact Us
Request A Quote
Product Details
Neck Diameter(mm):
30 Mm
Bottle Volume(ml):
2000 Ml
Cavity::
4 Cavities
Max.Bottle Height(mm):
130 Mm
Max.Bottle Diameter(mm):
105 Mm
Voltage:
380V/220V
Weight (KG):
1000 KG
Blow Moulding Type:
Stretch Blow Moulding
Payment & Shipping Terms
Product Description

Customized Factory Direct Sales (0.3-2L) Semi Automatic Blow Molding Machine



Specification:



Name
Item
Unit
Details
Blowing machine
Dimension
mm
1700*600*2050mm
Bottle Volume(max)
ml
2000
Bottle volume(Min)
ml
50
number of cavities
mold
2
Model thickness(max)
mm
200
Model width
mm
360*390
Mold strock
mm
170
Streching stroke(max)
mm
420
Working pressure
Mpa
0.8-1.0
Blowimg pressure
Mpa
2.0-3.0
Pre-heater
Dimension
mm
2080*630*1380
weight
kg
330
voltage
KW
380V/14KW
Air compressor
working pressure
Mpa
0.8-1.0
air pressure
Mpa
3.0
Product Description

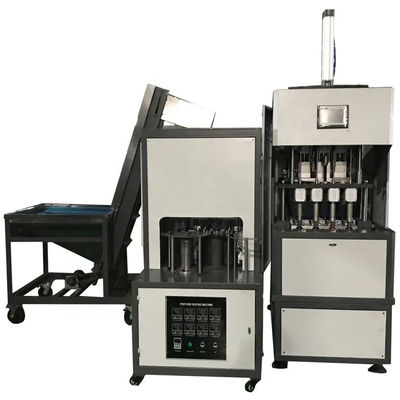

WT-B4 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000 ml.It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould, heavy locking mould, stable and fast. Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.


Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle 0

Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle 1

Customized Semi Automatic Blow Moulding Machine For 0.3L 2L PET Bottle 2
