Project name : HY-3000 Model Full Automatic Blow Molding Machine Equipment For PET bottle

PLC Control Automatic Blow Molding Machine For PET Bottle OEM 0

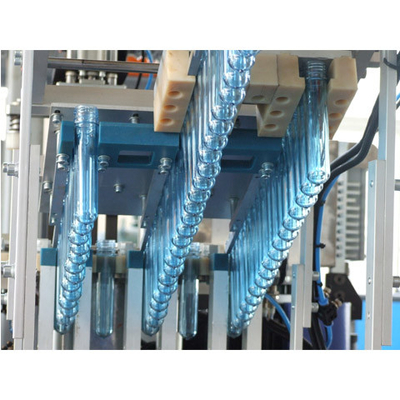

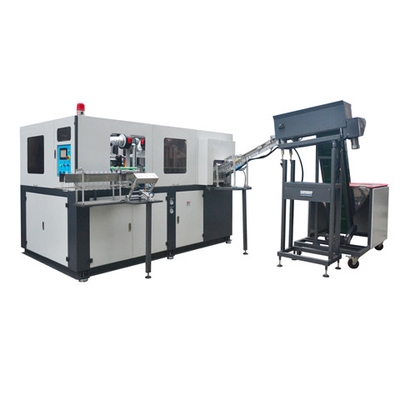

                                   HY-3000 BLOW MOLDING MACHINE







HY-3000



(3 cavity)



Model Product name QTY
HY-3000 Main machine 1SET
HY-3000 Auto-loader machine 1 SET
3 cavity

600ML Bottle mold

(Aviation Aluminum)

1SET
1.2m³/30Bar High pressure compressor 2SET
2.1m³/10Bar low pressure compressor 1SET
3HP Water chiller 1 SET
2.0m³/30Bar Air cold dryer 1 SET
1.0 m³/30 Bar Air filter 2 SETS
0.6 m³/30Bar Air tank 1 SET
3 cavity

1000ML Bottle mold

(Aviation Aluminum)

1SET
3 cavity

1500ML Bottle mold

(Aviation Aluminum)

1SET
Output PET BOTTLE:600ml:2800-3000bph 1L-1.5L:2200-2500



Remark:

1. one worker can operate 3 sets this kind automatic blow molding machine .

    the machine use Three phase : 380V/50hz 3phase  220V/50HZ   If your country electricity is different , please tell me .
2. Standard export packing suitable for sea journey .

3. Service:Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould.
4. Warranty:We response for one year warranty for the machine, however, it without any human conduct.

    And provide one-year free spare part for client.
5. Up 15 million shots for the bottle mould. All moulds are designed by CAD/CAM.
6. We also can provide the drawing for the mould, help you to maintain the mould, and machine.
7. Delivery time: The machine and mould will be made within 50 working day
s. AND the bottle mould will be finished with in 3 weeks.



Description:

HY-3000 is the fastest liner blow molding machine in mainland of China by now. HY-3000 reaches around 3000BPH for 350ML bottle.

Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high

output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more

smoothly and steadily.

HY-3000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages

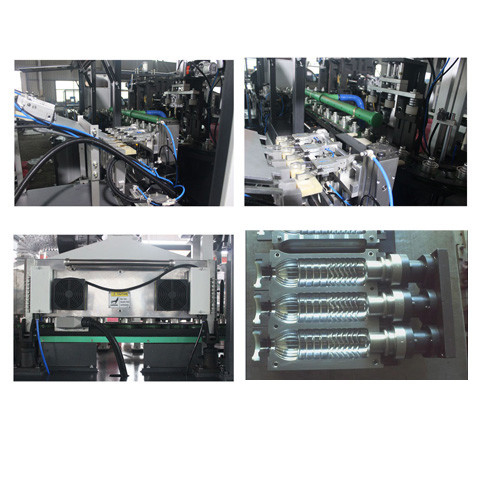

of labor saving and no pollution. HY-3000 consists of three main parts: preform loading system, Heater channel & blow station.



Machiine Features:

1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .

2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously

    in the infrared preheater

3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board

    in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state

    of safety in case of a breakdown in certain procedure.

5. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

6. Air route design is divide into two parts ,

7. Ideal effect of the chilling with the chilling system

8. Low rejection rate: less than 0.3percent



Container Max Volume L 2
Max Neck Diameter mm 38
Max Container Diameter mm 105
Max Container Height mm 335
Cavity   3
Theoretical Output bph 3000(*)
Electrical Clamping force KN 300
Heating Power Kw 32
Max Heating Power Kw 45
Air Compressor Operating Pressure Mpa 0.7
Low Pressure Consuming L/min 1400
Blowing Pressure Mpa 3.0
High Pressure Consuming L/min 2400-3600(**)
Chiller Pressure Mpa 0.3-0.5
Temperature 10-12
Flow Rate L/min 30
Machine Machine Size m 3.12x1.85x2.03
Machine Weight Kg 3500

(**)Depending on bottle size, shape and weight.

(*)Depending on bottle size and operation conditions.



MAIN SUPPLIER OF COMPONENTS:

PNEUMATIC PARTS
NAME BRAND ORIGIN
CLAMPING CYLINDER AIRTAC TAIWAN
BOTTOM DIE CYLINDER AIRTAC TAIWAN
STRETCHING CYLINDER AIRTAC TAIWAN
SOLENOID VALVE FESTO GEMANY
PLC MITSUBISHI JAPAN
PHOTOELECTRIC SWITCH OMRON JAPAN
PROXIMITY SWITCH OMRON JAPAN
MAGNETIC SWITCH FESTO FESTO
TENSILE SOLENIOID VALVE FESTO GEMANY
WATER SEPARATOR FESTO GEMANY
ROTATING MOTOR TUNGLEE TAIWAN
CLAMPING SOLENIOID VALVE ARK KOREA
STRETCHING FESTO GEMANY
TEMPERATURE MODULE XIZI CHINA
CIRCUIT BREAKER CHNT CHINA
AC CONTACTOR CHNT CHINA



AUXILIARY EQUIPMENT:

PLC Control Automatic Blow Molding Machine For PET Bottle OEM 1

Air compressor

HENGDA”HD-COMPRESSOR, 1.2/30 MOLD*2

TECHNICAL FEATURES

High air compressor

Model No:1.2/30

Air discharge:3.0m3/min

Pressure:3.0Mpa

Motor power:15KW

Package:1600×860×1140(mm)

Running speed:670r/min

Weight:530KG

PLC Control Automatic Blow Molding Machine For PET Bottle OEM 2

Compressor

Model:CW-2.0/10

AIR Speed :820 rpm

Discharge pressure :10 bar

Effectively produce volume :2.0Nm3/min

Minimum electric motor power :15Kw

Dimension(L×W×H) :2000×1000×1900 mm

Weight :650kg

PLC Control Automatic Blow Molding Machine For PET Bottle OEM 3

Air cold dryer

Model: STDP-2.0/3.0

Details as follows:

Rated flow:2.0 m3 /min

Working pressure:3.0Mpa

Inlet air temperature:≦45℃

Dew-point temperature:2-10 ℃

Power :0.75 HP

Refrigerant:Freon R22

Power supply:220V/50HZ

Operating current: 3A

Pipe diameter of inlet&outlet air:ZG1#

Dimension: 1000*570*850(MM)

Weight:100KG



PLC Control Automatic Blow Molding Machine For PET Bottle OEM 4

Air filter

22*22*64

Intake pressure:1.0-3.0mpa

Intake air temperature:≤80°C

It can filter out the impurities in the air and increase the service life of the machine



PLC Control Automatic Blow Molding Machine For PET Bottle OEM 5

Water chiller

brand XIECHENG

Item ZCL-03F

Refrigerating Capacity: 13500 W

111607Kcal/Hr

Input Power (KW):4.7kw

Power: 3PH-380V/50Hz/60Hz

Ambient temp: ≤40℃

Refrigerant: R22(404A)

Volume of Water Tank(L) :70L

Refrigerating Water Flow (L/min) :115

Refrigerating Water Outlet&Inlet (in) :3/4"

External Dimension : L:1300(mm)

W:(mm) 850

H:(mm) 1250

Weight(KG) 160

PLC Control Automatic Blow Molding Machine For PET Bottle OEM 6

High Pressure Air Tank

0.6m³/30KG



Dimension: 650*650*2120(MM)

Weight:300KG
