304 Stainless Steel Reverse Osmosis Membrane Shell Reverse Osmosis Membrane Water Treatment System

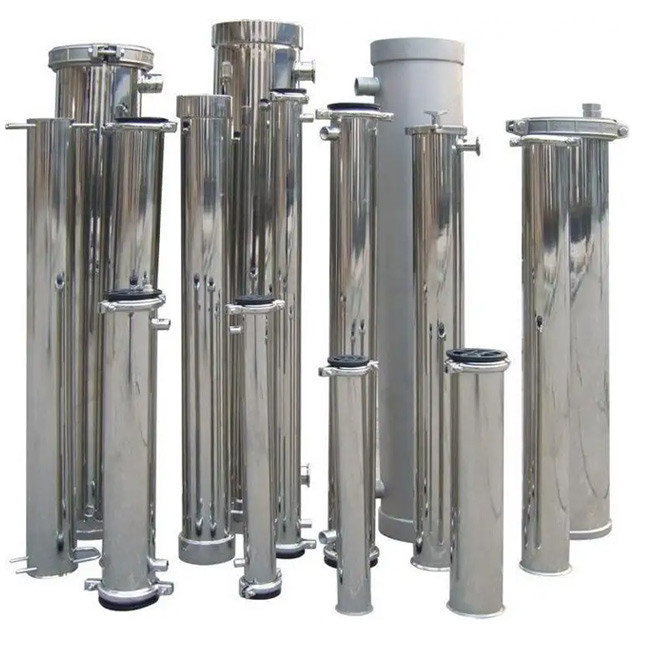

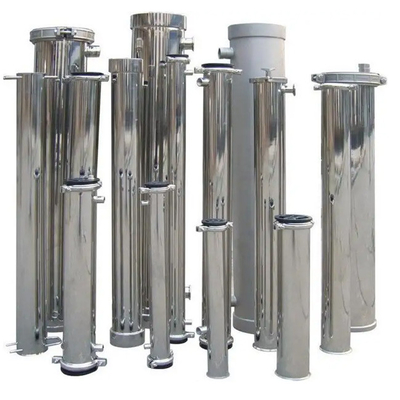

The stainless steel membrane shell is the basic part of the reverse osmosis equipment. The material is made of 304 stainless steel seamless pipe. According to the sealing form of the end cover, it is divided into: clamp type, flange type, built-in type; according to the water inlet method, it is divided into: end inlet, side inlet Enter. The length is matched with the number of reverse osmosis membrane components; the inside and outside of the product are polished, beautiful and practical, and the working pressure meets the normal operating pressure requirements of the reverse osmosis system.

Technical characteristics

• Pressure resistance: 2.0～2.5MPa
• Water inlet method: water inlet at both ends, water inlet on both sides
• Structure: standard spare parts, easy and quick to disassemble
• Sealing: after pressure test
• Organization structure at both ends: clamp type, card type, inner spring type.

Features

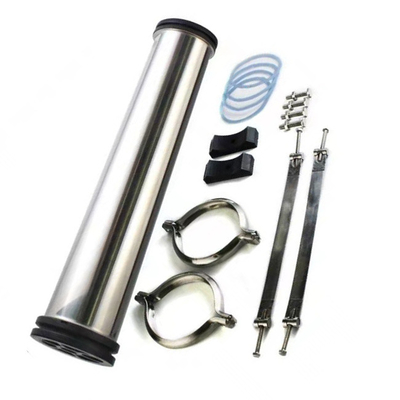

The 4040 membrane shell is divided into seamed and seamless, and is made of SUS304 stainless steel. Both ends are sealed with ABS head and silicone O-ring, which has high sealing performance and long service life.

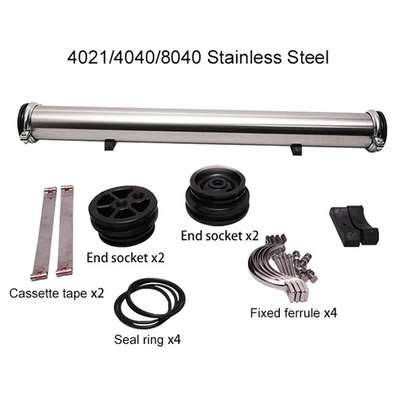

8040 membrane shell: ferrule and end cap type, made of SUS304 seamless stainless steel tube, good sealing performance, high pressure resistance, no aging, easy to install and clean the membrane, working pressure (Mpa): 4.0. The water inlet and outlet of the membrane shell can be end-in (out) or side-in (out) according to customer requirements. Stainless steel membrane shells are available in 2.5 inches, 4 inches, 8 inches, etc.

• 4-inch RO membrane shell has 1 core, 2 cores, 3 cores, 4 cores and other series.
• Membrane shell tubes are divided into two types: seamed tubes and seamless tubes.
• The water inlet and outlet connections are side-in and end-out, and end-in and end-out; the specifications are 6 points x 4 points and 4 points x 4 points.
• The head material is ABS﹑stainless steel.
