Place of Origin:
China
Brand Name:
Waterpro /OEM
Model Number:
4040/8040
FRP Reverse Osmosis System 4040/8040 treatment of water membrane element

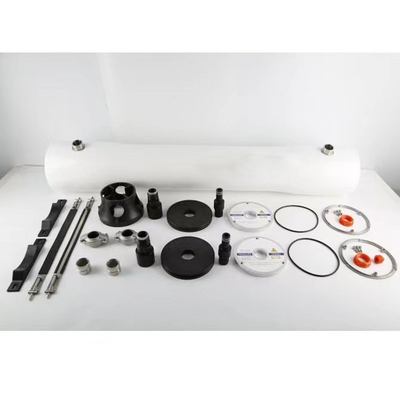

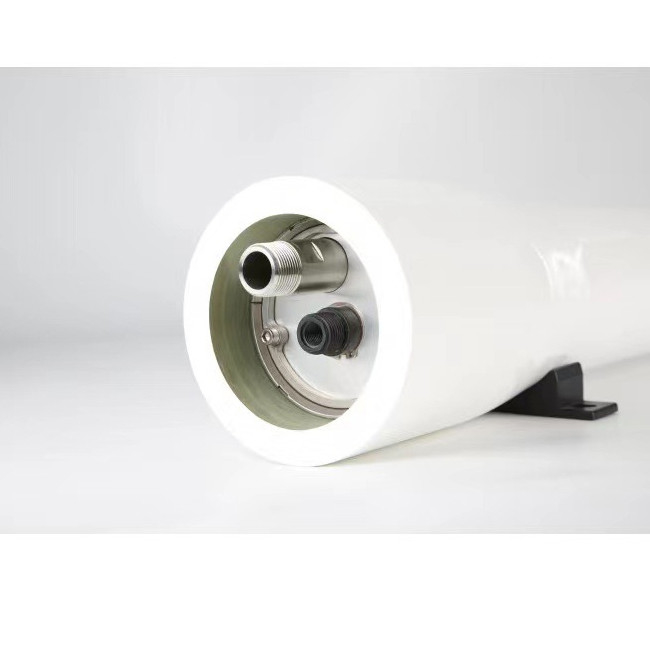

The FRP reverse osmosis membrane shell is manufactured by computer program-controlled winding unit and high-performance processing equipment. Based on these high-efficiency units and high-precision process flow, high-quality product production is ensured. And through the quality assurance system to meet the growing market demand for FRP reverse osmosis membrane shell. The membrane shell is easy to disassemble and assemble, so that users can save a lot of time and maintenance costs.
Excellent and reliable internal quality
The product is automatically wound and formed by computer control. The main material is epoxy resin and fiber material, which is processed by special technology, so that the finished product has the incomparable advantages of ordinary steel, plastic and other materials in terms of pressure resistance, temperature resistance and corrosion resistance.
Excellent insulation performance
Fiberglass membrane shell. At room temperature, the thermal conductivity is generally in the range of 0.15-1.36W (m.k), which is only about 1/200. Its thermal insulation performance is unmatched by metal materials. This feature is of great benefit to the reverse osmosis membrane in the membrane shell, and plays a role that the external temperature has little effect on the inside of the membrane.
Outstanding corrosion resistance
The combination of glass fiber and epoxy resin has been specially cured to form a natural corrosion-resistant product. The inner surface is smooth and the coating has good stability to low-concentration acid, alkali, salt, oil and other solvents. The seawater, microorganisms, etc. entering the shell are effectively inhibited. Long-term use will never corrode.
structural design
Strict lay-up design and optimized calculation details of the barrel body, head, and slot of the membrane shell ensure structural safety and ensure the safety and stability of the structure under long-term pressure.
The optimized design of the concentrated water side opening can meet the necessary safety pressure for one head with four side openings, and the variability in the installation process has been enhanced.
High-quality product comprehensive performance
The inner structure of excellent performance is safe and reliable.
The combination of excellent matching parts makes the sealing pressure performance higher.
Excellent surface treatment keeps the product as new as ever in any hot and humid environment.
| FRP 40E (End port) |
| Material | FRP |
| End cap material | ABS |
| Max.Working pressure | 300 psi, 450 psi, 600 psi, 800 psi, 1000 psi |
| Inlet port | 3/4'' |
| Outlet port | 1/2'' |
| Model | 4021, 4040, 4080, 40120, 40160, 40200 |
| FRP 40S ( Side port) | |
| Material | FRP |
| End cap material | ABS |
| Max. Working pressure | 300 psi, 450 psi |
| Inlet port | 3/4'' |
| Outlet port | 1/2'' |
| Model | 4021, 4040, 4080, 40120, 40160, 40200 |
| FRP 80S ( Side port) | |
| Material | FRP |
| End cap material | ABS |
| Max. Working pressure | 300 psi, 450 psi, 600 psi, 800 psi, 1000 psi |
| Inlet port | 1 1/2” |
| Outlet port | 1'' |
| Model | 8040, 8080, 80120, 80160, 80200 |
