5 Gallon PET Automatic Water Bottling Machine 100BPH With Washing Capping Function

5 Gallon PET Automatic Water Bottling Machine 100BPH With Washing Capping Function

PET Automatic Water Bottling Machine

5 Gallon Automatic Water Bottling Machine

pet bottling machine 100BPH

Place of Origin:


Brand Name:

Waterpro /OEM



Model Number:

XG-100 (100BPH)

Contact Us
Request A Quote
Product Details
Stainless Steel
Automatic Grade:
Filling Machine,water Filling Packaging Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Maintenance And Repair Service
Packaging Material:
PET Bottle,PC Bottle
Bottle Type:
PET Plastic Bottle,Round Bottle
Washing Filling Capping ,packaging Machine,bottle Filling And Capping Labeling Machine
Filling Material:
Flowing Liquid
One Year
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
10 PCS per month
Product Description

5 Gallon Water Filling Machine Pet Bottle Water Filling Machine Automatic Water Bottling Machine 100BPH

Our company provides five-gallon filling machines, which are mainly used to produce 3-gallon and 5-gallon large buckets of water. At present, according to market demand, the output of the five-gallon filling machine is divided into 150 barrels/hour, 300 barrels/hour, 450 barrels/hour, 600 barrels/hour-2000 barrels/hour.

This filling machine integrates disinfection and flushing in the barrel, automatic barrel unloading, filling machine, cap sorting, hanging cap, and capping. The filling machine is controlled by PLC, and the precise positioning is completed automatically. The whole set of equipment is made of high-strength stainless steel material, stainless steel plate, precision argon arc welding, small deformation, beautiful welding pattern; the transmission part is made of stainless steel, which ensures the normal operation of the mechanism in various environments Non-metal parts are carefully processed with non-toxic and high wear-resistant materials such as PP plastics; the transmission motor and booster pump are made of domestic export-type stainless steel products, and the electrical components are hardcovered with imported series or domestic famous brand series, which makes the performance more efficient. Stable and reliable. This equipment is composed of washing, filling and capping integrated host, which is suitable for the filling production of 3-5 gallon pure water in barrels. The internal flushing adopts 3 independently controlled single-row high-pressure internal spraying, and the maximum flushing time is 30 seconds. The whole process of flushing, filling and capping adopts PLC programmable automatic computer control system. This equipment has safety devices such as interlocking, signal and self-testing. Features: The whole machine is made of high-quality stainless steel, with reasonable structure, convenient operation and accurate action. It is the ideal equipment for the current bottled drinking water production line.


Process flow
Five-gallon 100-barrel single-row four-station:
Manual barrel loading → bottle washing station 1, 2, internal medicine flushing → bottle washing station 3: isolation and dripping → bottle washing station 4: bottle rinsing station with sterile water → barrel removal → filling → cap hanging → pressing Cover → finished product


Main configuration QTY
Disinfectant rinse pump 1 SET
Chain index cylinder 1 PCS
Push bottle cylinder 1 PCS
Low voltage electrical components 2 SET
Bottle cup (white) 12 PCS
filling pump 1 SET

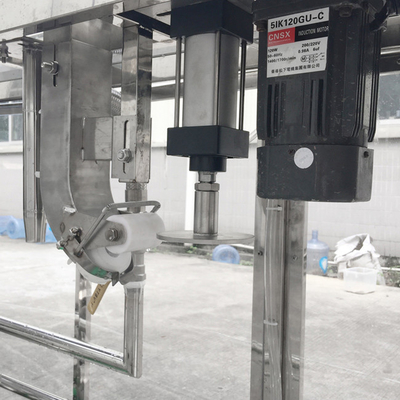

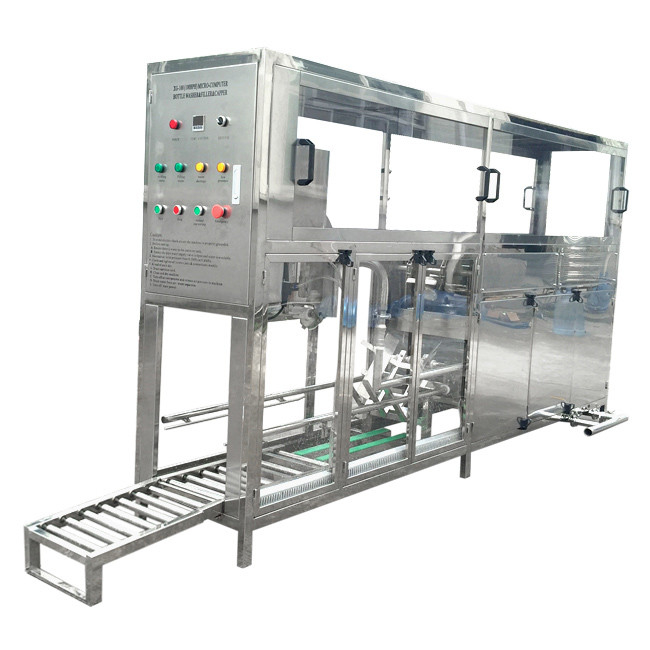

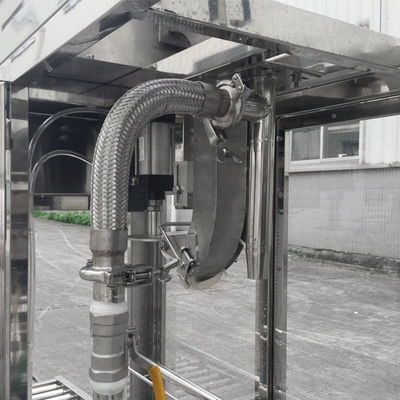

5 Gallon PET Automatic Water Bottling Machine 100BPH With Washing Capping Function 05 Gallon PET Automatic Water Bottling Machine 100BPH With Washing Capping Function 15 Gallon PET Automatic Water Bottling Machine 100BPH With Washing Capping Function 2
