Brand Name: | Waterpro /OEM |
Model Number: | CGF4-4-1 |
MOQ: | 1 |
Delivery Time: | 35 work days |
Payment Terms: | L/C, D/A, T/T, Western Union |

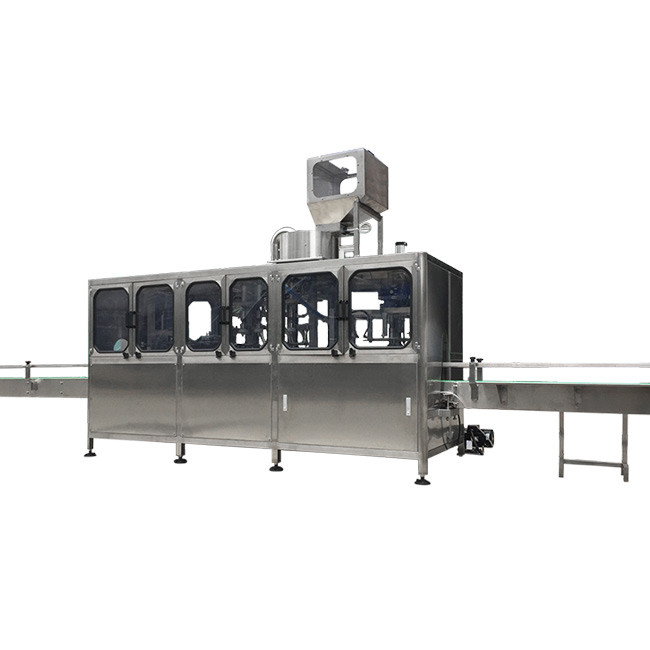

5 liter drinking water bottle packing and filing machine bottled water manufacturing machine
This machine integrates the three functions of washing, filling and sealing into one body, the whole process is automated, and the applicable bottle type adjustment of each part is easy, convenient and fast. The filling method adopts PLC control, which is stable and reliable, so compared with machines of the same specification, the price and production efficiency of this machine are more advantageous.
Process flow
Conveying→rinsing→filling→capping→conveying
On the barrel:
Empty drums are manually placed on the conveyor.
Rinse:
The online empty barrel is controlled by the barrel counting sensor, the barrel is sent to the flushing station, the barrel stop cylinder, the ratchet mechanism, and the barrel opening mechanism act, the barrel mouth is clamped and turned upside down by 1800, sent to the flushing station, and the water pump is started. Clean water is sprayed for internal flushing, the action returns, and the barrel is returned to the original station.

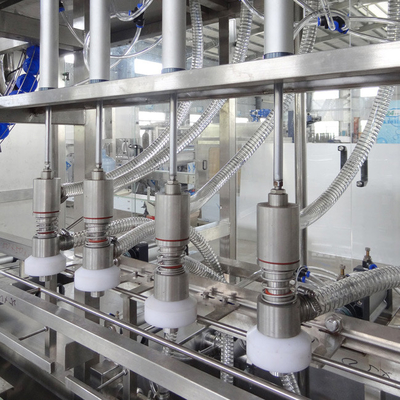

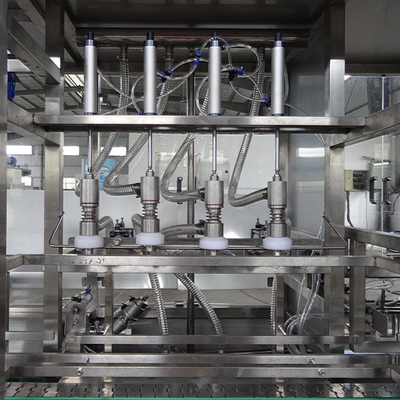

Filling:
On-line empty barrels are controlled by the barrel counting sensor. The empty barrels enter the filling station. The filling pump starts, and the PLC sets the filling time, filling volume and other parameters, and uses the touch screen function to adjust.

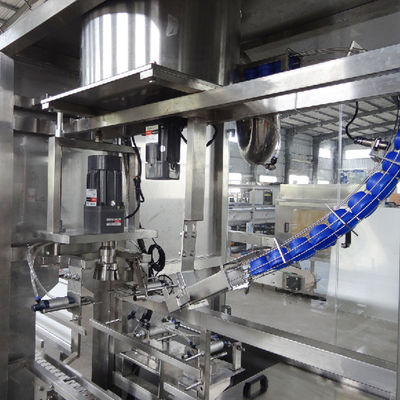

Cap sorting and cap screwing:
Online full bucket, controlled by the bucket counting sensor, full bucket enters the station with cover. The bottle caps are automatically sorted by the cap unscrambler, and flow into the lower cap tube. The mouth clamping mechanism operates to position the mouth of the barrel, the capping head presses the screw cap, and the finished product is output in a full barrel.
Terms of Payment
30% TT deposit before production, 70% TT balance before shipment
Delivery time
Delivery within 35~40 days after the contract takes effect, except for special voltage.
Product quality and after-sales service
Provide equipment warranty for one year.
Applicable barrel type | 5L |
Rinsing station | 4PC |
Filling station | 4PC |
Capping station | 1PC |
production capacity | 600 barrels/hour |
Air pressure | 0.6MPa |
Air consumption | 0.3m3/min |
water consumption | Washing water 0.4T/h, filling water 3T/h |
