380V 50Hz Drinking Water Filling Machine With Flushing Filling Sealing Combination

380V 50Hz Drinking Water Filling Machine With Flushing Filling Sealing Combination

Flushing Drinking Water Filling Machine

50Hz Water Filling Machine

380V Water Filling Sealing Machine

Place of Origin:


Brand Name:

Waterpro /OEM



Model Number:


Contact Us
Request A Quote
Product Details
Main Machine Square Tube, SUS304
Automatic Grade:
Filling Machine,water Filling Packaging Machine
Filling Speed:
Packaging Material:
PET Bottle,PC Bottle
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Maintenance And Repair Service
One Year
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
10 PCS per month
Product Description

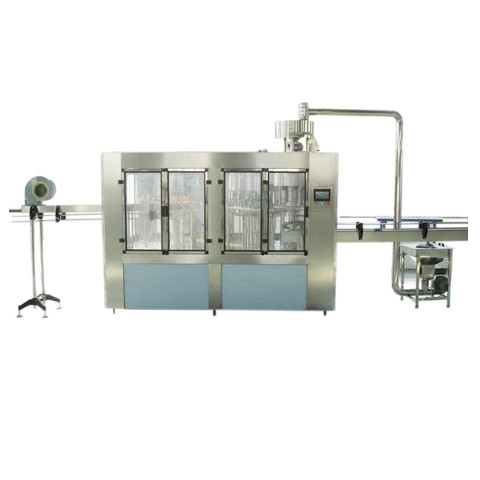

WTH18-18-6 Flushing Filling Sealing Combination All-In-One Machine

WTH18-18-6 type machine is composed of washer, filler, capper. It is suitable for purified water and mineral water filling. We combined with international advanced isobaric filling process and technology to develop this type of advanced machine independently. This machine conveys bottles by griping bottle mouth smoothly, normal pressure filling. Only need to change very few parts, it could be applied to a variety of bottle types.


★ The main body of the machine is structural steel. Appearance and frame are made of 304 stainless steel. Feet are adjustable.

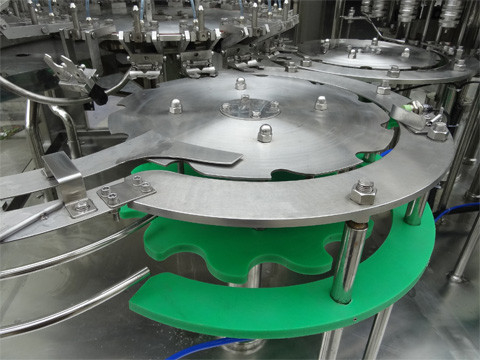

★ Delivery system uses star wheel conveyor , smooth transmission. Stainless steel conveyor chain reduces deformation.

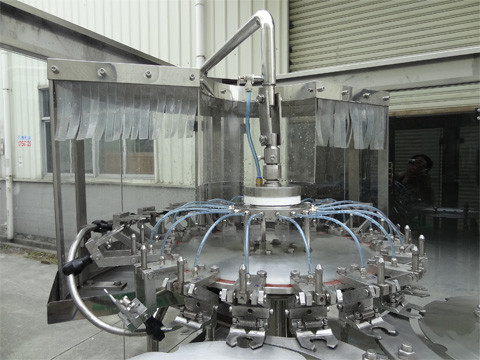

★ 18 washing heads. Chassis and flushing pipe are made of 304 stainless steel. , washing water filtration system.

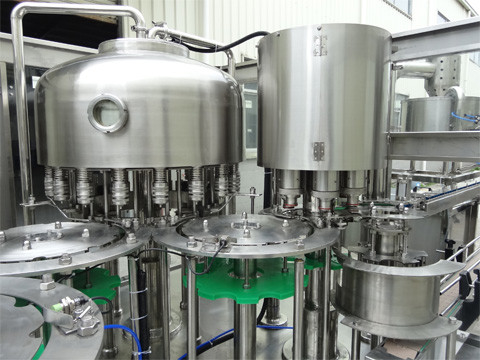

★ 18 filling valves. The parts contacting water are made of 304 stainless steel. The inner surface is polished. Using advanced professional steam containing filling valve produced by Nanjing light industry machinery company, it ensures the filling without boiling reflux pipe, stainless steel drainage tube, no dead angle.

★ 6 screwing heads, using magnetic torque device, torque adjustment is convenient. Screwing head torque can be set according to the actual production need.

Power system:

★ Main motor and reducer, frequency control of motor speed. Motion mechanisms moved by gear transmission, running stable. Each bottle conveying star wheel is engineering plastic part, with safety protection structure.

★ PLC, inverter, relays, photoelectric switch, relay element, touch screen panel, imported pneumatic components.

Main technical parameters:


Model: WTH18-18-6

Dimension 2500*1900*2200mm

Output capacity 5000-6000B/H (500ml)

Air supply pressure 0.4-0.6Mpa

Gas consumption 0.3m³/min

Water pressure for bottle washing 0.2-0.25Mpa

Water consumption for washing 1-2ton/h (maximum, adjustable)

Filling way Normal pressure filling

Main motor power 3kw

Gross motor capacity 4.5kw

Rated voltage 380V,50Hz three-phase electric

(special voltage can be customized)

Weight About 3.5ton


Touch screen and electrical equipment:

WTH18-18-6 3-in-1 Electrical Configuration List (touch screen)
No. Name Model Origin
1 Touch screen F940GOT-WD-c Mitsubishi
2 Programmable controller FX1S-30mr-001 Mitsubishi
3 Frequency converter FR-E540-3.7K-CH Mitsubishi
4 Module FX1N-485-BD Mitsubishi
5 AC contactor LC1-D0910/AC220V Schneider
6 Thermal relay LR2-D1308N Schneider
7 Circuit breaker DZ47-3P/32A Schneider
8 Circuit breaker DZ47-1P/3A Schneider
9 Emergency stop switch Y090-11ZS Schneider
10 Power indicator AC24V-LED Schneider
11 Potentiometer 4.7K-1/2W Schneider
12 Communication cable FX-50DU-CAB0-5M Domestic
13 Frequency converter cable RS-485 Domestic
14 Wiring row TD-2010 Schneider
15 Wiring row TD-15/45 Schneider
16 Sensor PR18-5DN Schneider
17 Photoelectric switch BEN5M-MFR Korean AUTONICS
18 Electrical accessories GB Domestic

Frame and other main parts:

No. Name Model Origin
1 Liquid cylinder of filling Stainless steel 304 TISCO
2 Filling valve Stainless steel 304 TISCO
3 Rack Square steel DOMESTIC
4 Base A3 medium plate DOMESTIC
5 Surface cladding Stainless steel 304 KOREAN POSCO
6 Outsourcing framework Stainless steel 304 KOREAN POSCO
7 Driving wheel Stainless steel 304 TISCO
8 Support Stainless steel 304 TISCO
9 Spindle Round bar steel DOMESTIC
10 Gear wheel High quality oil nylon and pig iron casting parts DOMESTIC
11 Main motor Turbine reducer SUZHOU LIDUO
12 Stainless steel pump Stainless steel 304 HANGZHOU CNP
13 Fluid valve pipeline Stainless steel 304 ZHEJIANG GANYEAH TUBE
14 Pneumatic components   AIRTAC
