Atmospheric Pressure Rinsing Drinking Water Filling Machine 3 In 1 Multifunctional

Atmospheric Pressure Rinsing Drinking Water Filling Machine 3 In 1 Multifunctional

Atmospheric Pressure Drinking Water Filling Machine

Drinking Water Filling Machine Multifunctional

Place of Origin:


Brand Name:

Waterpro /OEM



Model Number:


Contact Us
Request A Quote
Product Details
Stainless Steel
Automatic Grade:
Beverage , Food , Chemical , Medical
Filling Machine,water Filling Packaging Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Maintenance And Repair Service
Packaging Material:
Packaging Type:
One Year
Automatic Liquid Filling Machine,packaging Machine,Water Bottle Filling Line,PET Bottle Filling Line/water Filling Machinery
Washing Filling Capping,packaging Machine,bottle Filling And Capping Labeling Machine
Bottle Type:
PET Plastic Bottle,Round Bottle
Filling Material:
Flowing Liquid
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
10 PCS per month
Product Description

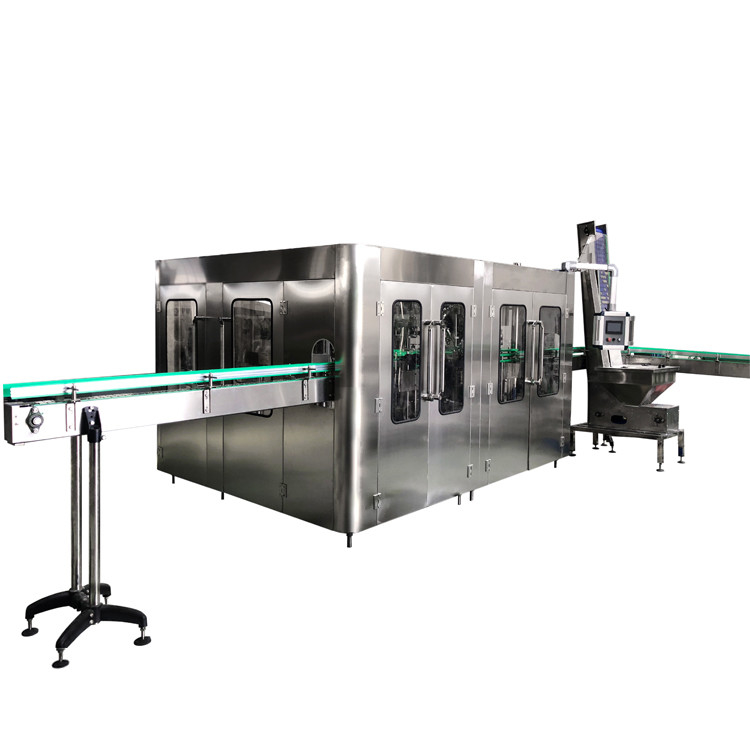

Automatic Atmospheric Pressure Rinsing, Filling And Sealing 3 In 1 PET Small Bottle Drinking Water Filling Machine


CGF24-24-8 Atmospheric pressure filling, rinsing and sealing three-in-one machine. It is a new type of equipment developed by our company based on years of practical experience in producing washing, filling and sealing three-in-one machines, repeatedly absorbing the opinions of various users, and drawing on foreign advanced technology. It meets the customer's requirements for filling different bottle types on one machine, and adopts a hanging manipulator that clamps the neck of the bottle, making it convenient and fast to change bottle types. It is mainly used for filling, rinsing and sealing of non-carbonated beverages such as mineral water and purified water.


Main Features

  1. It adopts three-in-one machine for rinsing, filling and sealing, which greatly reduces the occupied space;
  2. All the parts in contact with the liquid are made of 304L stainless steel, and the inner and outer surfaces are polished, which is easy to clean and hygienic. The seals are all imported parts such as silicone rubber or EPDM, which meet the requirements of food hygiene and filling;
  3. The design of the bottle rinser can be rinsed with sterile water to ensure a high degree of cleanliness of the bottle;
  4. Adopting the principle of pressure filling, the filling speed is fast and the liquid level control is stable;
  5. Unique new filling valve, return circulation system, the return air does not return to the filling cylinder, ensuring the high cleanliness of the filling materials;
  6. High-energy magnetic capping (torque can be adjusted to set), so that the adaptability of the equipment and the quality of capping are guaranteed​.

Technical Parameters:

Output 12000BPH(350ML PET Bottle)
Number of rinse bottles 24
Number of filling heads 24
Number of capping heads 8
Filling temperature: room temperature
Filling form: Gravity Filling
Total power: 8.63KW
Rinsing water consumption: 1.5T/H
Dimensions 2800x2200x2250 mm
Net weight: 4T

Atmospheric Pressure Rinsing Drinking Water Filling Machine 3 In 1 Multifunctional 0

Atmospheric Pressure Rinsing Drinking Water Filling Machine 3 In 1 Multifunctional 1
