Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment

Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment

Industrial 4000 lph ro plant

SS034 4000 lph ro plant

Sewage ss water plant

Place of Origin:

China

Brand Name:

Waterpro /OEM

Certification:

CE

Model Number:

RO-4000LPH

Contact Us
Request A Quote
Product Details
Material:
Stainless Steel, FRP Tank
Usage:
Reclaimed Water Plant Rainwater Recovery Station After Water Plant Sewage Treatment Plant
Capacity:
4000LPH
Votalge:
380V 50Hz, Or Customerized
After Warranty Service:
Video Technical Support, Online Support
Raw Water TDS:
<2000PPM
Pure Water TDS:
<10PPM
Warranty:
One Year
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD4070 -USD6900
Packaging Details
Naked or export wooden case
Delivery Time
35 work days
Payment Terms
L/C, D/A, T/T, Western Union
Supply Ability
20sets per month
Product Description

Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment



A.Description of ro water system

Reverse Osmosis or (RO) can be described as a procedure whereby pure water and contaminants is divided via a semi-permeable membrane(s) with very fine pores. This method is a necessary technique employed in the majority of water purification systems. Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus.

RO system is widely used in water tr
eatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals factories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
B.Main Parameters of the Reverse Osmosis System
Model
RO-4000LPH
Production capacity
4000L/H
Power
About 6.6KW
RO membrane
Toray RO membrane; BW30-400IG;4PCS
Power supply
AC 110-480V 50Hz/60Hz 3phase
Membrane housing
SUS304, 8040, 4pcs
Raw water pump
Nanfang pump
Quartz sand filter
Activated carbon filter
Control valve
SUS-304; Quartz sand
SUS-304 ;Activated carbon
Automatic control valve
Security filter
30″×5μm , 9pcs
High pressure pump
Nanfang pump
Desalination rate
97% - 99%
Recovery rate
50%-75%
Size (mm)
main machine: 2200X650X2000
Material
Full SUS304
Certificate
CE&ISO9001
Warranty
One year
C.Every part of the reverse osmosis system
S/N.
Commodity name
Application
Remark
1
Raw water tank
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system
Customer provide for themselves, because big size will result in expensive freight
2
Raw water pump or called booster pump
Provide needed pressure for every pretreatment filter
We can provide CNP pumps or Grundfos pumps
3
Mechanical filter or called quartz sand filter or sand filter
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
We use China brand or WAVE CYBER brand
4
Activated carbon filter
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual,chlorine and organics substances.
We use China brand or WAVE CYBER brand
5
Water softener, demineralizer, or called Na+ exchanger
(optional)
Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
We use China brand or WAVE CYBER brand
6
Antiscalant dosing system or PH regulating system
Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range.
Italy SEKO dosing pump or German Prominent
7
Security filter or pp filter, or called PP sediment filter
prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm,
Stainless steel housing or PVC housing
8
High pressure pump
Provide needed working pressure for RO system, ensure production capacity of pure water.
CNP pump, Grundfos optional
9
RO(reverse osmosis) system
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99%
dissolved salts.
RO membranes USA Filmtec Dow; Domestic well-known brand VONTRON.
10
CIP cleaning system
Cleaning RO membranes with chemicals
CNP pumps
11
Sterilizing device
UV sterilizer or ozone generator
DAHUAN ozone , ClearUV UV Lamp
Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment 0
D.Working Process
Raw water pump→ Mechanical filter(Quartz sand filter)→ Activated carbon filter→ Sodium-ion exchanger(Water softener)→ Security filter→ High pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).

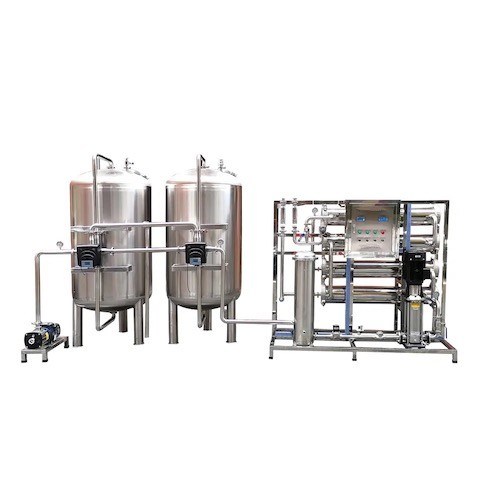

E.Product picture:
Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment 1
Industrial SS304 Tank 4000 Lph Ro Plant For Sewage Water Treatment 2
