| Brand Name: | Waterpro /OEM |
| Model Number: | WT-250D |
| MOQ: | 1 |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, D/A, T/T, Western Union |

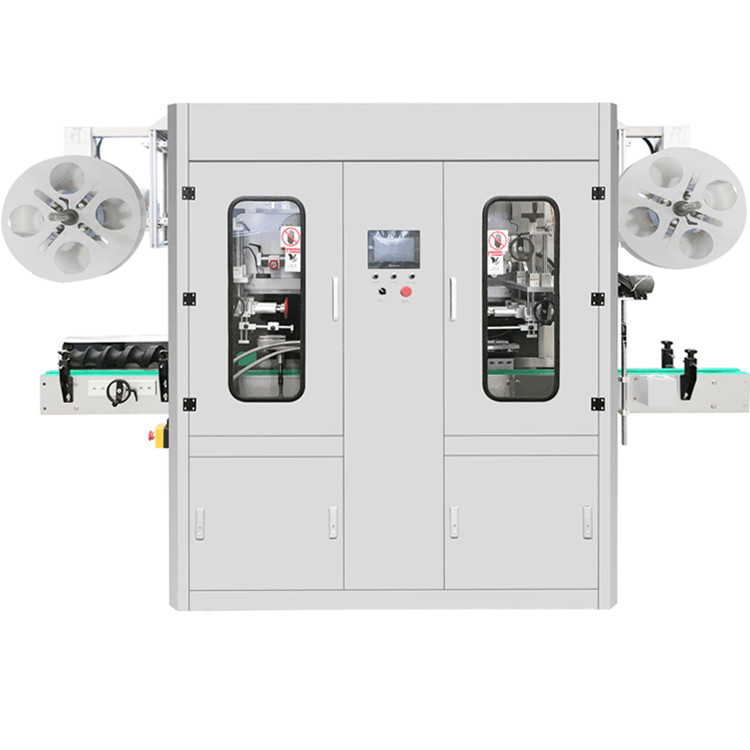

Automatic Sleeve Labeling Machine With Steam Heat Shrink Tunnel Plastic Packing Material
Brief Introduction:

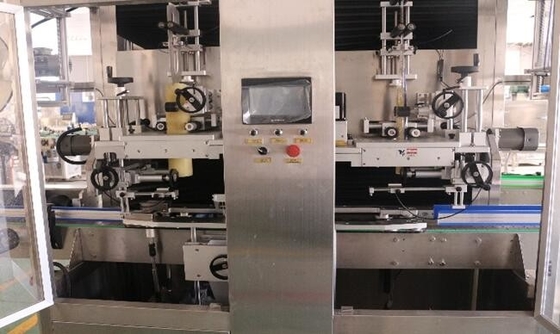

The double-head design mechanism meets the customer's requirements for bottle mouth and bottle body labeling. One machine with two uses has obvious advantages:
1.Reduce conveyor line length and increase site utilization and productivity.
2. Avoid secondary handling, reduce bumps during product transportation, and improve product quality.
Parameters:
|
Import Power |
6.0KW |
|
Import Voltage |
∮3, 380/220 VAC |
|
Capacity(production speed) |
15000 bottles per hour |
|
Dimension of Host Machine (mm) |
L3200× W1200 × H2070 |
|
Applicable Diameter Container (mm) |
φ28 mm ~ φ125 mm |
|
Applicable Label Length (mm) |
30~250 mm |
|
Applicable Thickness Label (mm) |
0.03~0.13 mm |
|
Applicable Inner Diameter of Paper Tube |
5''~10'' |
Steam heat shrink tunnel
WT-1800 steam heating shrink tunnel can be suitable for different and irregular bottle types, eg. Round, square and flat bottles.
Seamless pipes are used, and the distribution of low-pressure steam drums and steam nozzles are separated to make the tunnel unimpeded.
The steam nozzle is divided into three adjustable sections; the height, position and steam volume of each section can be adjusted separately; this ensures a perfect shrinking effect.
The whole machine is made of stainless steel, heat preservation, which not only saves energy, but also complies with international safety standards.
Stainless steel defrost pan to collect condensed water. The whole machine adopts waterproof design, which is convenient for operation and maintenance.
Parameters:
|
Equipment size |
2300L×550W×1500H |
|
Net weight |
220KG |
|
Material |
304 stainless steel |
Steam Generator
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service.
A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.
Working system is all automatically controlled.After connecting the water supply and power supple for 5 minutes or so,it can output the steam continuously with high working efficiency.
Parameters
|
Input Power Supply |
3 Phases 380V/220V |
|
Input Power |
36KW |
|
Steam Pressure |
0.4Mpa~0.7Mpa |
|
Water Tank Volume |
48L |
|
Vapor Generation Value |
25.8Kg/h |
|
External Dimension |
760mm*670mm*1360mm |
|
Weight |
125KGS |
Video
Video
Video
Video
|
|
