| Place of Origin: | China |
|---|---|
| Brand Name: | XST |
| Certification: | ISO9001 |
| Model Number: | XSTEDI05 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 2000-10000 Per Unit |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10-20 work day |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 100 Units Per Month |
| Flow: | 5000 LPH | Inlet Conductivity: | ≤30μm/cm |
|---|---|---|---|
| Inlet Pressure: | 0.15-0.45MPa | Inlet PH: | 7.5-9 |
| Temperature: | 5-38℃ | Inlet Hardness: | ＜0.5ppm |
| TOC: | ＜0.5ppm, None Is Better | Inlet Total CO2: | ＜3ppm |
| Control: | Automatic Or Manual As Customized | EDI Brand: | GE, MICRONIX Or As Customized |
| Application: | Water Purification,industrial Process Water Treatment,Drinking Water,Produce Ultrapure Water | After-sale Guarnatee: | 12 Months |
| High Light: | 5000LPH RO Water Treatment Plant,30μm/cm RO Water Treatment Plant,380v RO Water Treatment Plant |
||
Description of Electrodeionization Water Treatment EDI

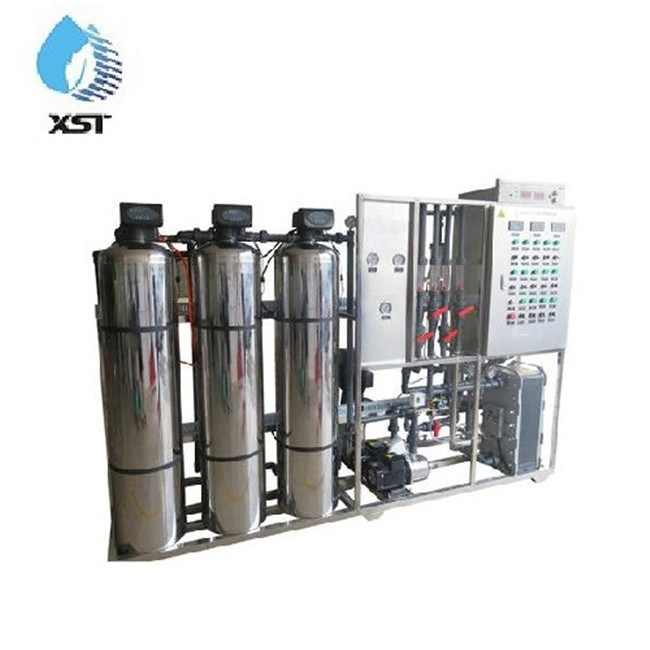

EDI Ultra Pure Water RO Water Treatment Plant
EDI is a cost effective, environmentally friendly alternative to conventional post-RO ion ex-changer applications in high purity water treatment.
Electro-deionisation (EDI) is a continuous deionization process combining electrodialysis (ED) and ion-exchange(IE) membranes and resins for producing ultra pure water.
Between a pair of electrodes of an electrodialyzer, there are usually multiple sets of anion membrane, cation membrane and separators (A, B) alternately arranged to form a dense chamber and a weak chamber (that is, cations can pass through the cation membrane, and anions can pass through the anion membrane). The cations in the water in the depleted room migrate to the negative electrode through the positive membrane and are intercepted by the negative membrane in the concentrated room; the anions in the water migrate towards the positive electrode and are intercepted by the positive membrane in the concentrated room, so that the number of ions in the water passing through the depleted room gradually decreases. It becomes fresh water, and the water in the concentration chamber, due to the continuous influx of anions and cations in the concentration chamber, the concentration of dielectric ions continues to rise, and becomes concentrated water, thereby achieving the purpose of desalination, purification, concentration or refining.
Inlet water quality request
EDI Ultra Pure Water RO Water Treatment Plant
1. Raw water: after RO treatment, conductivity< 30us/cm
2.PH:7.5~9.0
3.Temperature:5~38℃
4.Inlet water pressure:0.2~0.5Mpa
5.Hardness(CaCo3):< 0.5ppm
6.Organic matter:TOC<0.5ppm
7.Oxidizer:C12<0.05ppm;O3<0.02ppm
8.Silicon:<0.5ppm(SiO2)
9.Total CO2:<3ppm
10.Particulates:< 1μm
Standard System
EDI Ultra Pure Water RO Water Treatment Plant
| Model | Flow (T/hr) |
Electrical resistivity (MΩ) |
Power (KW) |
Rated Volatag | Recovery | Inlet | Pure water |
| XSTEDI05 | 5 | 15~18.2 | 1 | 220V/380v | 85~95% | DN20 | DN20 |
| XSTEDI10 | 1 | 15~18.2 | 1 | 220V/380v | 90~95% | DN25 | DN25 |
| XSTEDI20 | 2 | 15~18.2 | 1 | 380V | 90~95% | DN25 | DN25 |
| XSTEDI30 | 3 | 15~18.2 | 1 | 380V | 90~95% | DN25 | DN25 |
| XSTEDI40 | 4 | 15~18.2 | 1 | 380V | 90~95% | DN32 | DN32 |
| XSTEDI50 | 5 | 15~18.2 | 1 | 380V | 90~95% | DN32 | DN32 |
| XSTEDI80 | 8 | 15~18.2 | 2 | 380V | 90~95% | DN40 | DN40 |
| XSTEDI100 | 10 | 15~18.2 | 2.5 | 380V | 90~95% | DN50 | DN50 |
EDI Ultra Pure Water RO Water Treatment Plant
EDI equipment is applied after the reverse osmosis system to replace the traditional mixed bed ion exchange technology (MB-DI) to produce stable ultrapure water. Compared with mixed ion exchange technology, EDI technology has the following advantages:
①Stable water quality
②Easy to realize fully automatic control
③No shutdown due to regeneration
④No need for chemical regeneration
⑤Low operating cost
⑥Small plant area
⑦No sewage discharge
Applications of Electrodeionization Water Treatment EDI
EDI Ultra Pure Water RO Water Treatment Plant
Thermal power plant, Atomic energy, Electronic optoelectronics industry, Printing industry, Automotive battery industry, Bioengineering, Synthenic chemical industry, Petrochemical industry, Environment industry, Hydrometallurgical industry, etc.
1. Professional manufacturer : More than 20 years experience in prodcuing pure water treatment system
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 150 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
