| Place of Origin: | China |
|---|---|
| Brand Name: | XST |
| Certification: | ISO, SGS |
| Minimum Order Quantity: | 1 |
| Price: | USD 100-3000.00 Per Unit |
| Packaging Details: | Carton case or suitable packing as customized |
| Delivery Time: | 3-7 work day |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 2000 Units Per Month |
| Lamp: | 80W | Lamp Life: | Around 12000h |
|---|---|---|---|
| Chamber Material: | S.S304, S.S316L | Electricity: | 220V 50HZ ,110V 60HZ |
| Gross Weight: | 5KG | Application: | Water Disinfection |
| Wave Length: | 254nm,185nm | Power Supply: | 3w-100kw |
| Cleaning Way: | Manual Or Electric Self-clean Or Nothing | Flow Rate: | 4-4403 Gpm |
| High Light: | 12000h Ultraviolet UV Light Disinfection,80W Ultraviolet UV Light Disinfection,5KG Ultraviolet UV Light Disinfection |
||

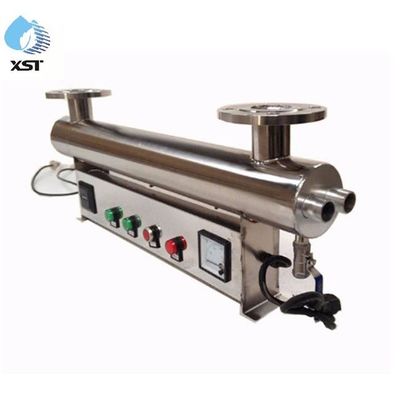

Ultraviolet disinfection working principle
UV disinfection is the international industrialized latest water disinfection technology,which is with thirty years of research and development in the late nineties. Application of UV disinfection is among 225 ~ 275nm, peak wavelength of 254nm ultraviolet spectrum of microbial nucleic acid to destroy the original body (DNA and RNA), thereby preventing protein synthesis and cell division, they ultimately can not replicate the original body of microorganisms, not genetic and eventually death. Ultraviolet disinfection disinfect fresh water, sea water, all kinds of sewage, as well as a variety of high-risk pathogenic body of water. Ultraviolet disinfection sterilization is the world's most efficient, the most widely used technology, the lowest operating costs of high-tech water disinfection products.
• International brand PHILPS and LIGHTSOURCE UV lamp with 9000-12000 hours working life.
• UV chamber with 304 SUS material(316L is optional), with mechanical polishing and welding.
(Electrolytic polishing is optional)
• The chamber pressure resistance meets the standard specification 1.0 Mpa.
• High performance ballast with operate LED light, approved by CE and UL certification.
| Flow Rate | Size (mm) | ||
| Model | TPH | Lamp Watts | Inlet/outlet Port |
| XST-UV-10 | 0.056 | 10W | 1/4" |
| XST-UV-12 | 0.26 | 12W | 1/4" |
| XST-UV-16 | 0.5 | 16W | 1/2" |
| XST-UV-25 | 1.5 | 25W | 1/2" |
| XST-UV-30 | 1.9 | 30W | 3/4" |
| XST-UV-55 | 2.85 | 55W | 3/4" |
| XST-UV-110 | 5.4 | 110W | 1" |
| XST-UV-165 | 8.5 | 165W | 1.5" |
| XST-UV-200 | 10 | 220W | 1.5" |
| Parameter | Standard |
| Fe | ≤0.3 (mg/l) |
| Hydrogen sulfide | ≤0.05 (mg/l) |
| Suspended solid | ≤10 (mg/l) |
| Mn | ≤0.05 (mg/l) |
| Hardness | ≤120 (mg/l) |
| Chroma | ≤15 (degree) |
| Turbidity | ≤5 (NTU) |
| Water temperature | 5℃~60℃ |
• Ultraviolet disinfection technology is very expeditious in destroying bacteria.UV energy can destroy bacteria and virus in just about 1-5 seconds. In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods (Chlorine, Ozone, Chlorine Dioxide).
• Comprehensive range of disinfection.
Ultraviolet disinfection technology has been widely applied for efficiently destroying pathogenic microorganisms, bacteria and virus.
• No secondary pollution.
Since no chemical is added, ultraviolet disinfection system will not cause secondary pollution for water and environment.
• Low operational costs, simple operation and maintenance and economical prices.
• Occupied small space.
Occupied small space and easy assembly enable UV equipment to be installed at the place near water and power source. The ultraviolet equipment starts working after connecting the inlet and outlet of the Ultraviolet equipment and powering up.
Q: How long will take to change UV Lamp?
A: Suggestion 8000hours,because Work efficiency reduction in 8000hours.
Q: How long should be cleaning quartz tube ?
A: Suggestion 6 months.
Q: How long time UV chamber can using?
A: Depending on use of the environment 5-10years.
Q: Can eyes look at ultraviolet lamp?
A: NO, they are inside.
Q: Are you UV Sterilizer Purification Manufacturer?
A: Yes, we are manufacturer of UV Sterilizer Purification for 12 years in China.
Q: Could you make OEM service?
A: Yes, OEM is welcome.
Q: How to choose the model of UV Sterilizer Purification ?
A: Please contact us , good solution for you.
