| Place of Origin: | China |
|---|---|
| Brand Name: | XST |
| Certification: | ISO9001 |
| Model Number: | XSTW-3T |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 1000-10000 Per Unit |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10-20 work day |
| Payment Terms: | T/T |
| Supply Ability: | 50 Units Per Month |
| Product Name: | Hospital Sewage Disposal | Water Capacity: | 1-500m³/hr |
|---|---|---|---|
| Voltage: | 380v / 220v | Type: | MBR Membrane, MBR System |
| Material: | Carbon Steel Or Stainless Steel | Color: | According To Customer's Requirements |
| Application: | Hospital Sewage Water Treatment Plant | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Key Words: | Mbr Membrane Wastewater Treatment Equipment | Certifications: | ISO9001 |
| High Light: | MBR Membrane Wastewater Treatment Plant,500m³/hr Wastewater Treatment Plant,220v MBR Water Treatment Plant |
||

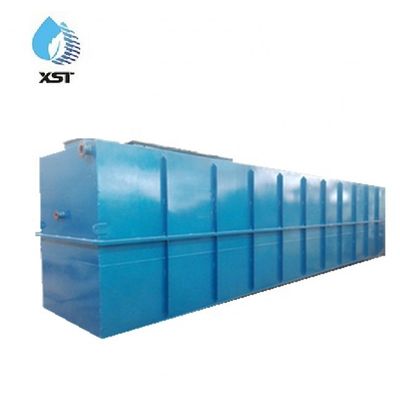

Description of MBR wastewater treatment plant

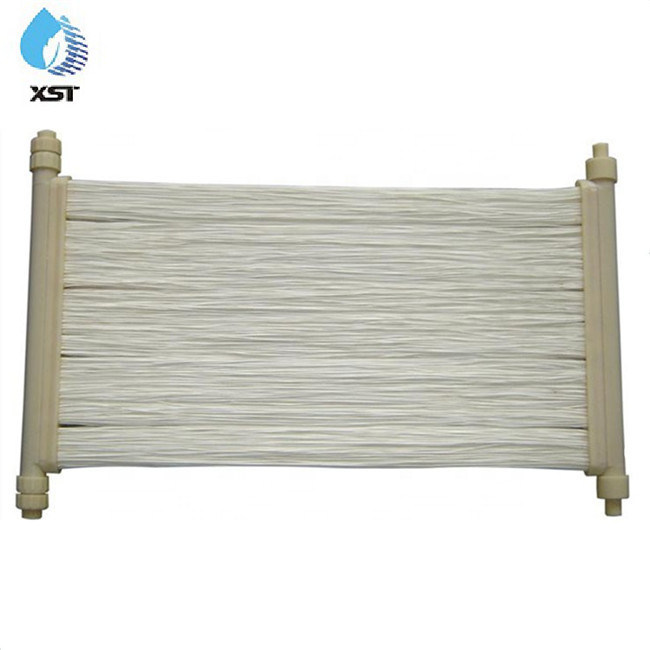

What is the MBR?
Product Overview
Membrane Bioreactor (MBR) is a kind of advanced technology developed since the end of 20th century which realized the efficient combination of membrane separation technology with biological technology. The membrane separation technology replaces the traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be zero. Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it can be reused without the third level treatment. Due to the high security and economic and effective water, it greatly expands the scope of application of waste water recycling.
Process of MBR wastewater treatment plant
Technological Process:
Sewage → Grille → Regulating pond → MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet water SS <1mg/L.
4. Membrane area: 8m2, advised gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.
| Model | Capacity: m3/h |
| XSTW-0.5 | 0.5 m3/h smallest model |
| XSTW-1 | 1 m3/h |
| XSTW-2 | 11-15 m3/h |
| XSTW-3 | 3 m3/h |
| XSTW-5 | 5 m3/h |
| XSTW-10 | 10 m3/h |
| XSTW-50 | 50 m3/h |
| Other capacity | can be customized different capacity |
Advantages of MBR wastewater treatment plant
1) The module design make the machine flexible, it is easy to expand the volume.
2) Small space taking, and simple operation;
3) Long life cycle, and high efficiency;
4) Good after-sales service, engineers online guidance, if you need the on-site service, we can arrange;
Widely Application
1) Hotel, Restaurant, Sanatorium, Hospital, School
2) Bus and Railway Station, Airport, Seaport, Dock
3) Factory, Mine, Tourist Spot
4) Residence Community, Villa District, Village, Town
