| Place of Origin: | China |
|---|---|
| Brand Name: | XST |
| Certification: | ISO9001 |
| Model Number: | XSTRO-100T |
| Minimum Order Quantity: | 1 |
| Price: | USD 40000.00 / Unit |
| Packaging Details: | wooden case or container |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |
| Supply Ability: | 10 units per month |
| Outlet Flow: | 100m³/hr | Main Material: | FRP, Stainless Steel, Carbon Steel |
|---|---|---|---|
| RO Frame: | Carbon Steel With Painting Or SS304 | System Packing: | Wooden Case Or Container |
| Operation: | Automatic, PLC | Pressure Pump: | CNP, Grundfos Or As Customized |
| Desalination Rate: | ≥97% | Rejected Water: | 50%-70% |
| Service: | Online Support,Video Technical Support,Field Installation,commissioning And Training,Free Spare Parts | Electricity: | 220V /380V/460V - 50Hz/60Hz,220V 50HZ 1P Customize Can Offer |
| Membrane Elements: | Hydranautics, DOW / Vontron / CSM | Maintenance: | 12 Months |
| High Light: | 100m³/ Hr Water Treatment Plant Ro System,460V Water Treatment Plant Ro System’,100m³/hr RO water treatment plant |
||

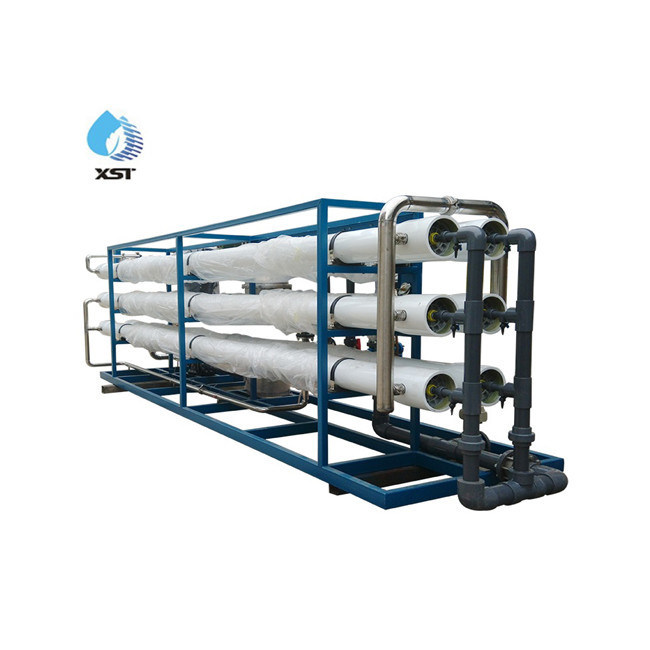

100m³ / Hr Water Treatment Plant Ro System For Energy Project
Function of Salt Water Reverse Osmosis System
1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8. UV sterilizer or ozone generator--- kill bacteria
Introduction of Water Treatment Plant Ro System
Standard RO Parameter:
| Model | Capability | Operation | Feed inlet | Membrane | Membrane | Recovery | Power |
| (Tons/Hr) | (MPa) | (MM) | Size(Inch) | (Qty) | (KW) | ||
| XSTRO-250L | 0.25 | 1.0-1.4 | DN20 | 40×40 | 1 | 50% | 1.1 |
| XSTRO-500L | 0.5 | 1.0-1.4 | DN20 | 40×40 | 2 | 50% | 1.5 |
| XSTRO-750L | 0.75 | 1.0-1.4 | DN25 | 40×40 | 3 | 60% | 2.2 |
| XSTRO-1000L | 1 | 1.0-1.4 | DN25 | 40×40 | 4 | 60% | 2.2 |
| XSTRO-1500L | 1.5 | 1.0-1.4 | DN25 | 40×40 | 6 | 60% | 3 |
| XSTRO-2000L | 2 | 1.0-1.4 | DN25 | 40×40 | 8 | 60% | 3 |
| XSTRO-3 | 3 | 1.0-1.4 | DN32 | 40×40 | 12 | 65% | 4 |
| XSTRO-6 | 6 | 1.0-1.4 | DN40 | 80×40 | 6 | 65% | 5.5 |
| XSTRO-10 | 10 | 1.0-1.4 | DN50 | 80×40 | 10 | 75% | 11 |
| XSTRO-15 | 15 | 1.0-1.4 | DN50 | 80×40 | 15 | 75% | 15 |
| XSTRO-20 | 20 | 1.0-1.4 | DN65 | 80×40 | 20 | 75% | 18.5 |
| XSTRO-30 | 30 | 1.0-1.4 | DN65 | 80×40 | 30 | 75% | 32.5 |
| XSTRO-40 | 40 | 1.0-1.4 | DN65 | 80×40 | 40 | 75% | 44.5 |
| XSTRO-50 | 50 | 1.0-1.4 | DN65 | 80×40 | 50 | 75% | 47.5 |
Feature and advantages:
1. System can produce water continuously and high degree automation.
2. No need chemical to regenerate, easy operation and maintenance.
3. Core components of ro system are imported USA membranes.
4. Automatic switch on when low water level, and switch off when high water level
5. System flushes RO membranes automatically, reducing membranes polluted speed.
6. Water shortage protection for multi-stage pump
7. Product water conductivity meter can monitor water quality online continuously.
8. Low operation cost and long life span
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
