Place of Origin:
China
Brand Name:
Waterpro /OEM
Certification:
CE
Model Number:
RO-15000LPH

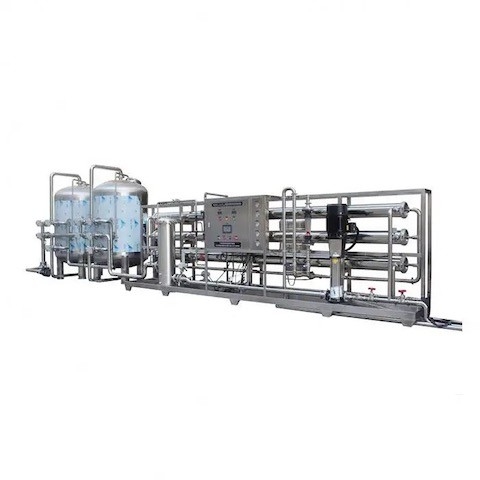

15000LPH Ro Water Purifier With SS304 Tank Industrial water treatment plant
Function of each part of water treatment plant
1. Feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5u
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8. UV sterilizer or ozone generator--- kill bacteria.
Reverse osmosis machine introduction for each parts
| Water tank | Storage water, Built-in stainless steel float ball valve and inlet water level sensor to maintain the normal water level of the tank. |
| Water pump | In order to ensure the system water supply flow and pressure balance set |
| Quartz sand filter(stainless steel 304 or FRP material) | It is mainly used to filter solid substances in water, and the filter medium is generally quartz sand. It has the characteristics of high strength, long life and stable water quality. It is an indispensable pretreatment equipment for reverse osmosis, electrodialysis and ion exchange |
| Activated carbon filter (stainless steel 304 or FRP material) | It can remove harmful humic acid, fulvic acid, lignoflavic acid and other organic matter in water. Usually can remove 60% to 80% of the colloidal material; 47% to 60% organic matter. |
| Softener(stainless steel 304 or FRP material) | It removes calcium and magnesium ions that form scale in hard water. |
| Security filter | The third stage filtration is carried out on the reverse osmosis system water, the purpose is to reduce or eliminate the filter material particles leaked out of the pre-treatment equipment to play a final protective role, to ensure that the final water into the reverse osmosis system meets the requirements. |
| High pressure pump | In order to ensure the system water supply flow and pressure balance set. |
| Reverse osmosis system | The reverse osmosis device in the system uses the world's most advanced polyamide composite membrane element as the main element, its single membrane desalination rate ≥99.5%, the system desalination rate 96-98%, can effectively remove the suspended particles in the water, organic silica gel, organic matter, bacteria, viruses, pyrogen and other impurities. |
| Ultraviolet ray sterilization (UV) | When the bacteria were exposed to ultraviolet light with A wavelength of 2600°A, the bacteria absorbed the ultraviolet energy and were killed |
| Ozone sterilizer | Ozone is a very strong oxidant, ozone water has a rapid and efficient sterilization. The concentration of ozone in water is 0.1-0.2mg/L, which can kill all bacteria. The concentration of ozone is 0.3-2mg/L, which can kill bacteria within 1 minute. |
