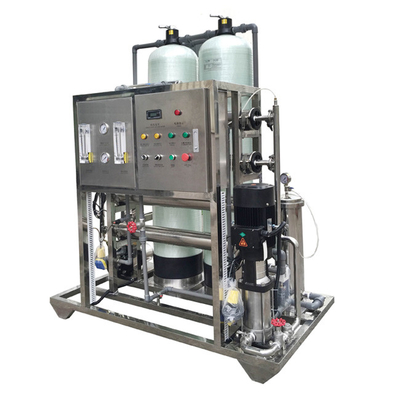

Stainless Steel Ro Water Plant 1000 Lph , Industrial Ro Water Purifier With FRP Tank

1000LPH Ro Water Purifier With Frp Tank Industrial Ro Water Treatment Plant

This system adopts the advanced RO technology. With the scientific design and process, the system is fully automatic and easy for operation. The treated water is suitable for direct drinking with good taste.

Reverse osmosis, referred to as RO, is a membrane separation technology developed in the 1960s. Its principle is that the raw water passes through the reverse osmosis membrane under high pressure, and the solvent in the water diffuses from high concentration to low concentration to achieve separation, purification and concentration. Because it is opposite to the direction of penetration in nature, it is called reverse osmosis. Reverse osmosis can remove bacteria, viruses, colloids, organic matter and more than 98% of dissolved salts in water. The method has the characteristics of low operating cost, simple operation, high degree of automation, stable effluent quality and the like. Compared with other traditional water treatment methods, it has obvious advantages and is widely used in water treatment related industries.



Workflow:

Tap water →source water tank →water pump →quarts filter →active carbon filter →Precise filter →softener →multilevel pump→ RO membrane→UV light →pure water tank →Ozone mixing system →Bottling machine



Applicable industry
1. Drinking water: People attach great importance to the health and safety of drinking water, and pure water has become a fashion in modern society.
2. Water for food factories: It is used in industries that require high water quality, such as refined fresh vegetables, food refrigeration, cold food and canned food, and livestock and poultry meat processing.
3. Swimming pool facilities: swimming pools, swimming pools and some outdoor landscape pools have higher requirements on water quality, and pure water equipment is also required to produce pure water.
4. Circulating cooling water: Water-cooled air conditioners and central air conditioners commonly used in industry and life are involved. Smelting projects also have high water quality requirements and require a large amount of pure water.
5. Public places: places where we work and study, such as residential areas and hotels, enterprises and public institutions, airports, schools, troops, hospitals and other public places, have relatively high requirements for drinking water quality and require pure water equipment to manufacture Purified water to meet the needs of this group of people, etc.

Function: Auto wash and manual wash RO membrane; auto stop when water in high level; Auto run when water in low lever; Multi-levels pump with protection of no water, protection for no power, low voltage, short circuit, larger electric current

Capacity		1000LPH(25℃)	Inlet water	2000LPH
Power		3KW	Voltage	AC380V 9A 50Hz
Specification
Description					Qty
Booster pump	CHL2-40 0.55KW(Nanfang)				1
Quartz sand filter	Φ350＊H1400-1452 Fiberglass tank, 150Kg quartz				1
Active carbon filter	Φ350＊H1400-1452 Fiberglass tank 75Kg active carbon				1
Softener	Φ300＊H1400-1252 Fiberglass tank 80L resin (optional)				1
Precise filter	Φ100*250mm 3 pieces PP filter				1
High-pressure pump	CDLF2-22 2.2KW(Nanfang)				1
RO system	Stainless steel framex1,Toray 4040 Membrane x4, 4040 Membrane Housing x4,Flow meter x2, Conductivity meter x1,pressure meterx3, PVC pipe, electric control x1				1
