Place of Origin:
China
Brand Name:
Waterpro /OEM
Model Number:
FRP 817
FRP water treatment tank Diameter 7"-16" civil series water treatment plant

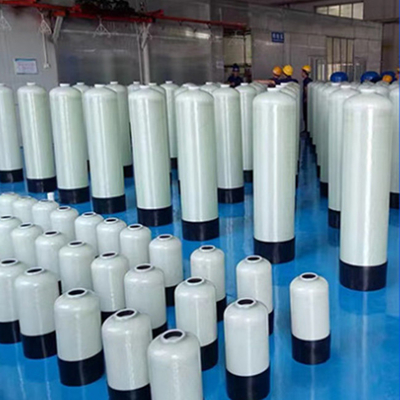

FRP tank is a kind of non-metallic composite tank made of resin and glass fiber wound by microcomputer-controlled machine. It has the advantages of corrosion resistance, high strength, long service life, flexible design and strong manufacturability. Due to the characteristics of FRP tanks, FRP tanks are widely used in chemical, environmental protection, food, pharmaceutical, printing and dyeing industries, gradually replacing carbon steel and stainless steel in most market areas.
Structure and material
Lining material: PE plastic blow molding, seamless and leak-free
Outer winding: reinforced glass fiber and epoxy resin
Base material: PP modified plastic
Application conditions
Working pressure: 100psi/7bar or 150psi/10.5bar
Working temperature: ≤1-49℃
Maximum vacuum: 127mm Hg
Minimum storage and transportation temperature: -27°C
Design parameters
Burst pressure: 600psi/42 bar; number of fatigue cycles: 100,000 times
Filling filter media selection

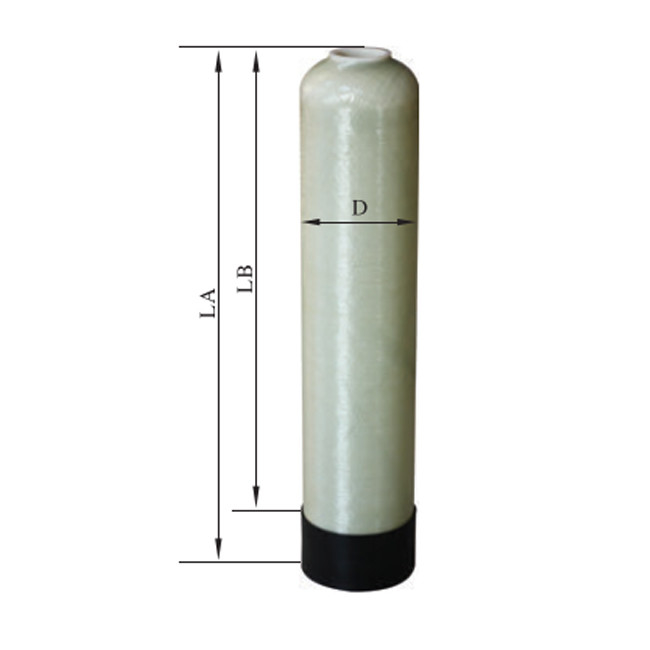

FRP tank specification table
| Model No | Dia.X Height(mm) | Inch Size | Top Open | Bottom Open |
| 817 | Ø200×439 | 817 inch | 2.5 inch | N/A |
| 835 | Ø200×898 | 835 inch | 2.5 inch | N/A |
| 844 | Ø200×1130 | 844 inch | 2.5 inch | N/A |
| 935 | Ø225×900 | 935 inch | 2.5 inch | N/A |
| 1054 | Ø250×1391 | 1054 inch | 2.5 inch | N/A |
| 1252 | Ø300×1333 | 1252 inch | 2.5 inch | N/A |
| 1265 | Ø300×1663 | 1265 inch | 2.5 inch | N/A |
| 1354 | Ø325×1376 | 1354 inch | 2.5 inch | N/A |
| 1465 | Ø350×1655 | 1465 inch | 2.5 inch | N/A |
| 1665 | Ø400×1648 | 1665 inch | 2.5 inch | N/A |
