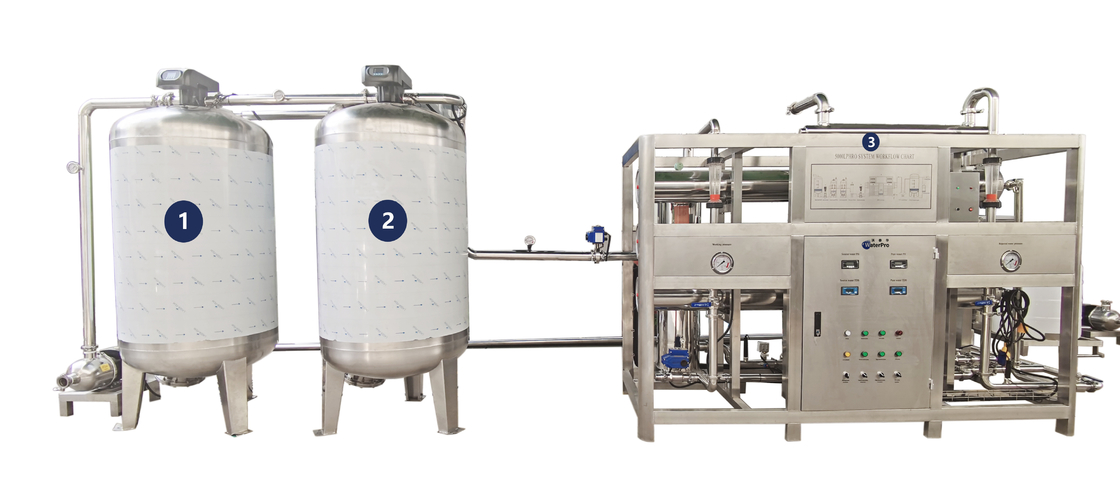

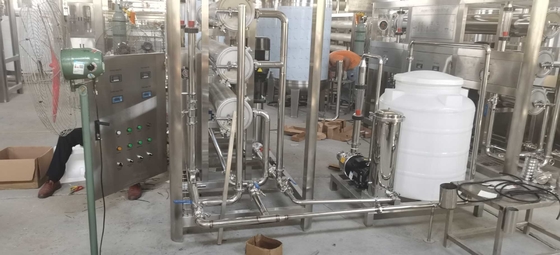

Industrial SUS304 Material Ro Water Treatment Plant Equipment 5000L Per Hour

5000L Per Hour Stainless Steel Ro Water Treatment System Plant Water Purification Plant Processor

Reverse osmosis is a membrane separation technology driven by pressure by means of the function of selectively permeable (semi-permeable) membrane. When the pressure applied in the system is greater than the osmotic pressure of the influent solution, water molecules continuously pass through the membrane. , flows into the central tube through the water flow channel, and then flows out at one end. Impurities in the water, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet, so as to achieve the purpose of separation and purification.

The RO water purifying equipment employs the ultra-low pressure reverse osmosis technology to purify tap water. Cooperating the deliberately designed filtering and absorption system, the purifier can effectively remove the materials harmful to health such as all kinds of bacteria, viruses, pesticide residue, heavy metal ion, etc. in the water. Besides, the purifier is especially good at removing carcinogenic substances and other morbid substances that cannot be eliminated by regular means, e.g., trichloromethane,fluorine, etc.

Please note, when using this machine, source water TDS value should be lower than 500mg/L.

The RO water purifying equipment adopts a whole set of perfect and formal work arts for making purified water, with open design in the form of cabinet and bracket, and clear work flow, it is easy to maintain and keep up. The purifiers can act as the core facilities of the water purifying rooms for communities, industrial areas, oil fields, etc., or serve as the water processing facilities for industries such as foodstuffs, beverages, chemicals, medicines, semiconductors, electronics, etc.

This system adopts the advanced RO technology. With the scientific design and process, the system is fully automatic and easy for operation. The treated water is suitable for direct drinking with good taste.

Work flow:

Tap water---source water tank---water pump---quarts filter---active carbon filter---Precise filter---softener-----multilevel

pump--- RO membrane -----UV light----pure water tank----Ozone mixing system-----Bottling machine

Function:

Auto wash and manual wash RO membrane; auto stop when water in high level; Auto run when water in low lever; high pressure pump with protection of no water, protection for no power, low voltage, short circuit, larger electric current.
